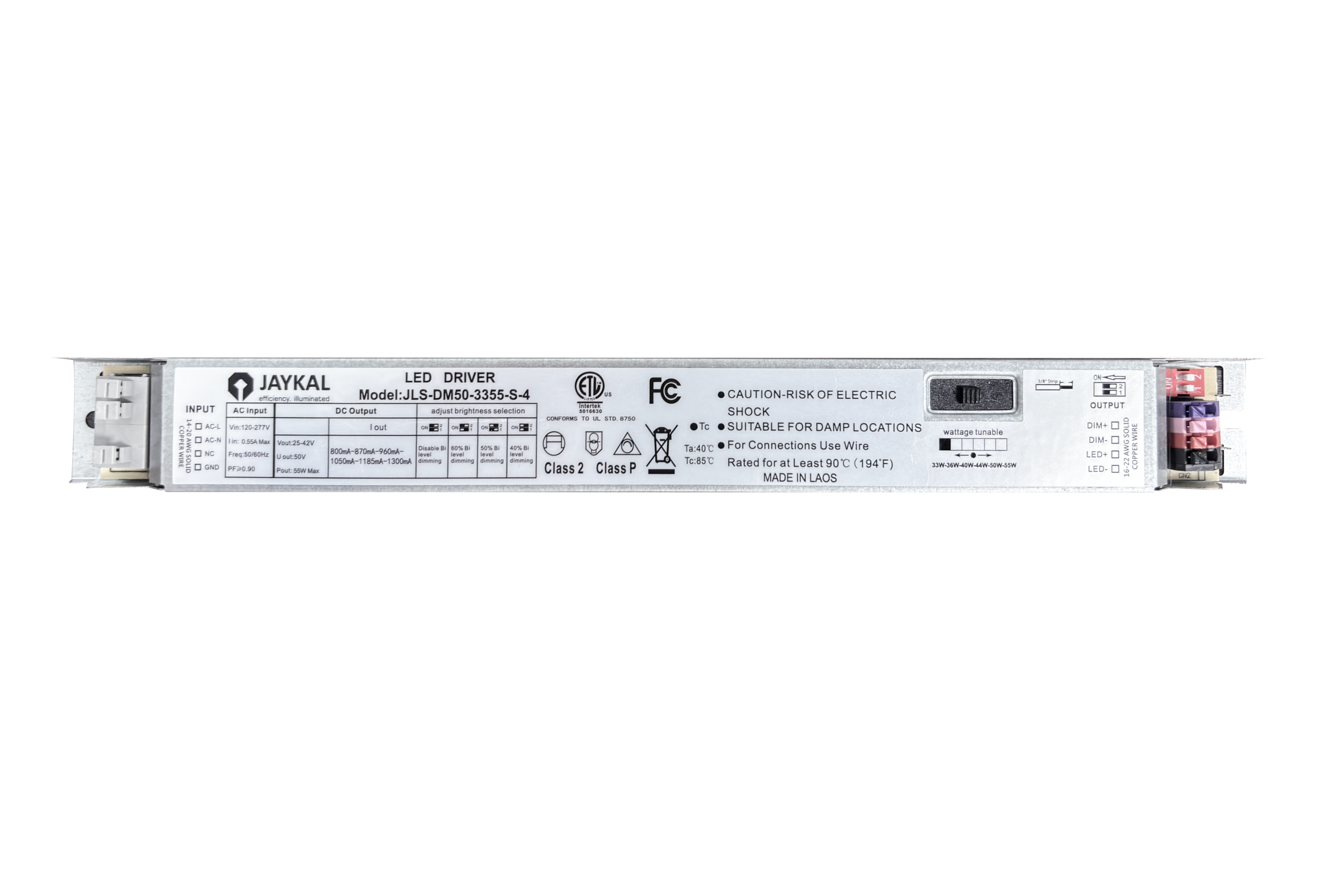

M50 Vari-Watt Driver G3 Series
New Construction Fixture
Jaykal’s DM50 Vari-Watt (VW) LED driver series has been updated with slimline dimensions to fit into tight retrofit applications. Our bi-level dimming circuitry feature is added for simple room control with existing wall switch. The six preset wattage positions are compatible with both future and past Jaykal indoor products, enhancing our product line’s performance. The driver features integrated 0-10V dimming, compatible with networked lighting controls as well as simple wall dimmers. Additionally, an optional 12VDC auxiliary output for powering sensors makes this VW driver sensor-ready for any application.
Type: 0715, 1830, 3355
Input Voltage: 120-277V
Input Wattage:
M1: 7W-9W-10W-11W-12W-15W
M2: 18W-20W-22W-24W-27W-30W
M3: 33W-36W-40W-44W-50W-55W
Output VOltage: 25-42V
Output Current:(38.5V)
M1: SS:165-360mA ; FF:160-350mA
M2: SS:435-715mA ; FF:425-700mA
M3: SS:790-1300mA ; FF:780-1270mA
PF: >0.9
Flicker:
Flicker-free: <5%
Dimming Options:
0-10V; 10V PWM; 5050 Stage; Resistor dimming
Operating Temperature: -20o to +50o C
Warranty: 5-Year Standard
